Promix Chemical Process Pump
Promix Chemical Process Pump
Back to the product list

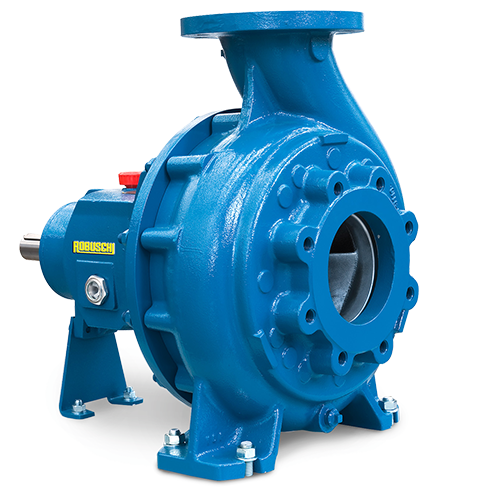

Centrifugal Pumps Equipped with Open Impeller
PROMIX

RACN-RACNS centrifugal pumps are equipped with open impeller type, RCN-RCPN / RCNS-RCPNS series with closed impeller type and RKC - RKCS series with open impeller type installed in recessed position.

  • Capacity up to 2,000 m³/h
  • Head up to 80 m


    Contact Us
    Request a Quote Request Service, Parts, or Support
    Share

    Features

    RACN-RACNS series

    is equipped with open impeller and designed with wide cross sections between the blades to pump, without any clogging problems, thick or highly viscous liquids with non-fibrous solid particles, and solutions with high solid content. It is suitable for heavy duty in pulp and paper, in sugar, chemical and food processing applications.

    The main features are:

    • The impeller design makes it possible for the pump to reach a high energy efficiency.
    • The casing is provided with replaceable wear plate which can be adjusted externally to maintain the clearance with the impeller constant so as to ensure the high efficiency of the pump.
    • Inlet nozzle with large dimensions to ease the suction of liquids containing a high percentage of solid particles and to reduce the impeller wear.
    • Heavy duty shaft, flexure on seal less than 0.05 mm.
    • Heavy duty support (RACNS) with oversized and higher lifetime bearing and higher stiffness granting pump heavy duty and less vibration.

    Promix Chemical Process Pump

    RCN-RCPN / RCNS-RCPNS series

    is designed with wide cross sections between the blades to pump, without any clogging problems, liquids with non-fibrous solid particles. It is suitable for use in the pulp and paper industry, the sugar industry, the chemical industry, in iron metallurgy, in the food processing industry, in sewage treatment plants and shipyards.

    The main features are:

    • Pump casing designed with open spiral ring to pump liquids containing solid particles and to avoid air bubble formation.
    • The casing of RCN - RCNS series pumps is provided with a replaceable wear ring, to pump liquids with abrasive solid.
    • Inlet nozzle with large dimensions to ease the suction of liquids containing a high percentage of solid particles and to reduce the impeller wear
    • Heavy duty shaft, flexure on seal less than 0.05 mm

    Promix RCNS Chemical Process Pump

    RKC - RKCS series pumps

    is designed with a special casing in order to generate the pumping vortex. In this way the liquid flows through the pump without entering the impeller vanes. This avoids clogging problems with viscous liquids containing solid particles and fibrous materials, and liquids with air. It is suitable for use in the pulp and paper industry, the sugar industry, the chemical industry, in the food processing industry, in iron metallurgy, in sewage treatment plants and shipyards.

    The main features are:

    • Replaceable wear plate with special hydrodynamic profile
    • Heavy duty shaft, flexure on seal less than 0.05 mm

    Promix RCNS Chemical Process Pump

    Downloads

    2022 Cat Promix_C7-1A17C
